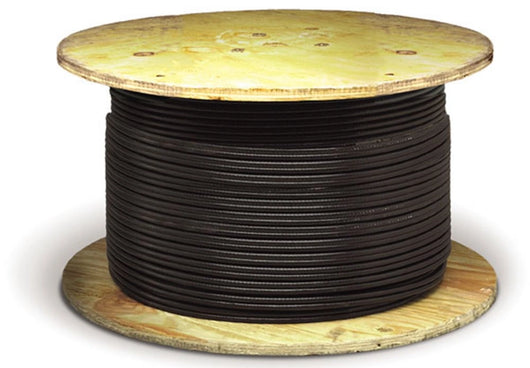

CFD600 Coaxial Cable - 100M Drum

We’re sorry, but this product has been discontinued. Please see above for similar or newer versions, or feel free to contact us for further assistance.

Contact Us

Description

Item discontinued. Please see CC-HDF400-100M or CC-CLF200-100M as an alternative.

  • CFD600 Extra Low Loss Coaxial Cable
  • Approx 0.22db loss per Metre for 5Ghz applications
  • Approx 0.14db loss per Metre for 2.4Ghz applications




CFD600 Coaxial Cable (Per Metre)

Nominal Attenuation -

30MHZ - 0.014dB/m
50MHZ - 0.018dB/m
150MHZ - 0.032dB/m
220MHZ - 0.039dB/m
450MHZ - 0.056dB/m
900MHZ - 0.082dB/m
1500MHZ - 0.109dB/m
2000MHZ - 0.121dB/m
2500MHZ - 0.145dB/m
5800MHZ - 0.238dB/m

Physical Characteristics

  • Inner Conductor O.D - 0.176inch / 4.47mm.
  • Dielectric O.D - 0.455inch / 11.56mm - Foam PE.
  • Outer Conductor O.D - 0.461inch / 11.71mm.
  • Standard Jacket - 0.59inch / 14.99mm - Black PVC.
  • Weight - 0.200 Kg/m

Electrical Characteristics

  • Nominal Impedance - 50 ohms.
  • Nominal Velocity of Propagation - 87%.
  • Capacitance - 76.6 pF/m

Please Note - This is a semi-rigid cable and difficult to route in a tight area, bends must have a minimum radius of 150mm to avoid potential damage to the cable
