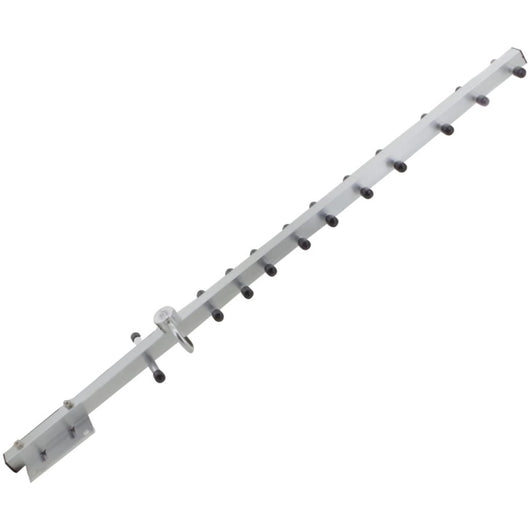

14dBi GSM/3G Dual Band Directional Yagi Antenna N-Type

• Dimensions: 730x80x20mm
• Power Handling_ 50W
• Polarisation: horizontal/vertical
• Beam width: 48 degrees horizontal, 34 degrees vertical
• Frequency: 1800/2100MHz
• Impedance: 50O
• VSWR: <1.5

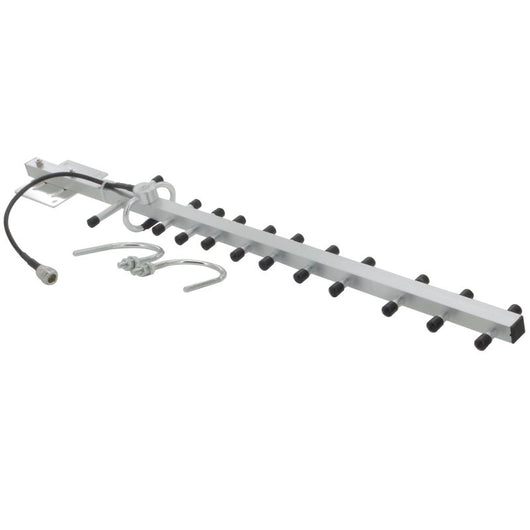

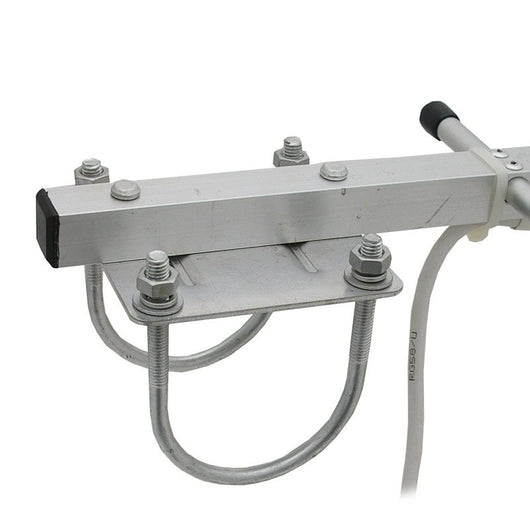

• Pole Mountable - the antenna is supplied with a secure dual U-bolt mounting kit to allow you to install to a pole
• Cable extension leads available in range of different lengths - sold separately

A high end DCS/3G dual-band Yagi Antenna. This antenna has the following features;

1800MHz & 2100MHz Dual Band High Gain Networking Antenna - 14dBi narrow beam antenna for long range applications - for UK 2G /3G providers and all 2100MHz 3G networks (please note this antenna is not compatible with the O2 900MHz 3G service which is now available in certain areas, (please confirm with their coverage checker)

Vertical or Horizontal Polarisation - This yagi antenna can be rotated 90° to offer polarisation in both planes. A vertical pole will offer vertical polarisation, a 90°, an elbow adaptor or horizontal pole is required for horizontal polarisation. (All UK mobile phone signals are vertically polarised)

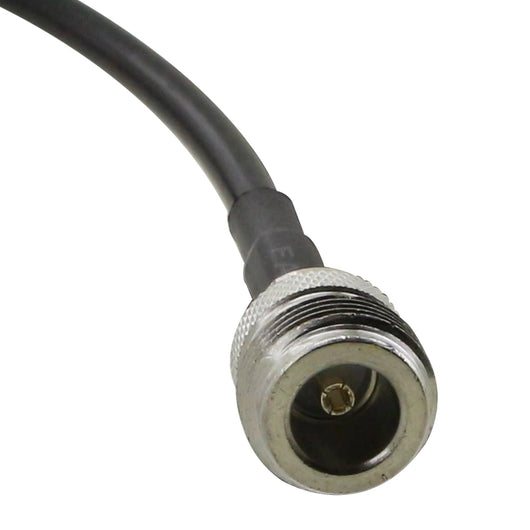

Supplied with N-Type Connector - Fitted with 30cm of RG58 cable terminated in an N-type female connector. See our Connector Look Up Tables to check which connector you require

• What connector type do I need? Click Here
• GSM-Mobile-Phone-Frequency-Look-up
